Top SaleEcu-Programmer-Tool XPROG Full-Adapters V6.12 Authorization V5.86 Metal-Box V5.55 Add

Ecu-Programmer-Tool XPROG Full-Adapters V6.12 Authorization V5.86 Metal-Box V5.55 Add

Ultimate Sale 26% Discountfor Top SaleEcu-Programmer-Tool XPROG Full-Adapters V6.12 Authorization V5.86 Metal-Box V5.55 Add, finest quality assurance from established manufacturer.

€ 11,43 - 145,52
4.9
(based on 216 user reviews)
Producer: MaJack
Identifier: 32703978787
Volume Retail Sales: MaJack piece
Availability: 521 pieces
Last Update : Fri, 30 Oct 2020
Product Details

    Top SaleEcu-Programmer-Tool XPROG Full-Adapters V6.12 Authorization V5.86 Metal-Box V5.55 Add Specification & Description Summary

    Top SaleEcu-Programmer-Tool XPROG Full-Adapters V6.12 Authorization V5.86 Metal-Box V5.55 Add Specification

    • Brand NameEKETOOL
    • OriginCN(Origin)
    • Model NameAuto ECU Programming
    • ElectronicNo

    item description

    2020 New Release Xprog V6.26 Add More New Authorizations


    Software V6.26 Firmware V5.9:


    Please Attention For Xprog V6.26 Software Installation Tips:
    1. MUST Connect Internet,use online(But DO NOT UPDATE)
    2. PC Time MUST adjust to Accurate Local Time
    3. MUST first install 6.26registry,then run V6.26 Software
    4. After used,close the software and unplug the usb dongle from the computer
    5. Better to use in English System

    Please must follow this instructions to run software,otherwise device will not installed.


    XPROG V6.26 using tips:
    1.XPROG V6.26 dongle isn't compatible with older version Xprog.  You are not allowed to update from the older version Xprog V5.55 V5.60 V5.70 V5.84 V6.12 to this newest V6.26 XPROG-M Dongle.
    2. Please Close all anti-virus software in your computer, because the anti-virus software will kill Xprog V6.26 driver and software
    3. Uninstall all the old version XPROG software and registry before you install V6.26   software, because XPROG V6.26 hardware is not compatible with other version XPROG software. Otherwise the hardware will be damaged and its warranty will be invalid.
    5. Never try to UPDATE it, the hardware will be damaged and lost authorization if you try to update it online. Warranty will be invalid.



    Please MUST READ THIS :

    1. Which XPROG version you use , before open software MUST install the right version registry. Otherwise it will runs old version registry automically and then confilt with new hardware and device dead.
    2. If your computer no install other old xprog version,it also require install right registry ,otherwise device runs fault and defective .


    XPROG-M V6.26 Software Add New Authorizations and Chip Supported List Part Display:

    Latest Released Xprog V6.12 ELDB Add more function XPROG-M ECU Programmer With USB Dongle



    Please Note:
    For XPROG V6.12 and XPROG V6.17
    Send from China without USB Dongle(New configuration,cancelled usb dongle).
    Send from overseas Warehosue Spain and Russian, with USB Dongle.
    Function the same,please do not worry .
    If you mind this ,please consider before order.



    Software V6.12  Firmware V5.4


    Error About Certifate Expired:

    ​When buyer meet this problem ,it means your computer install other older version and didn't uninstall yet.and computer has old xprog software registry.red and didn't uninstall ,so it wil cause this problem .
    Now you need buy ATMEGA 64 chip to reflash programmer and then next time must click 6.12registry and then run 6.12 software.

    So No matter which version you use,before open software MUST click the right version registry .Otherwise it will runs old version registry and then confilt with new hardware and show this update error.
    EYZ)FLE4HT18E0G{3_FOQ)D


    Top 5  Reasons to Get Newest XPROGV6.12:
    New Generation Hardware, runs more steady and faster than oldversion.
    Latest software version: V6.12 ,Firmware V5.4
    Language: English
    Operating system: WinXP/Win7/Win8
    Add More Authoirzation than old version:
    Add new authorization:

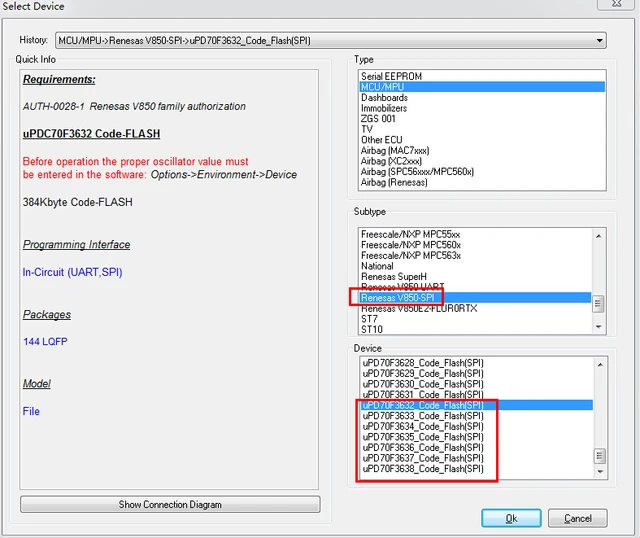

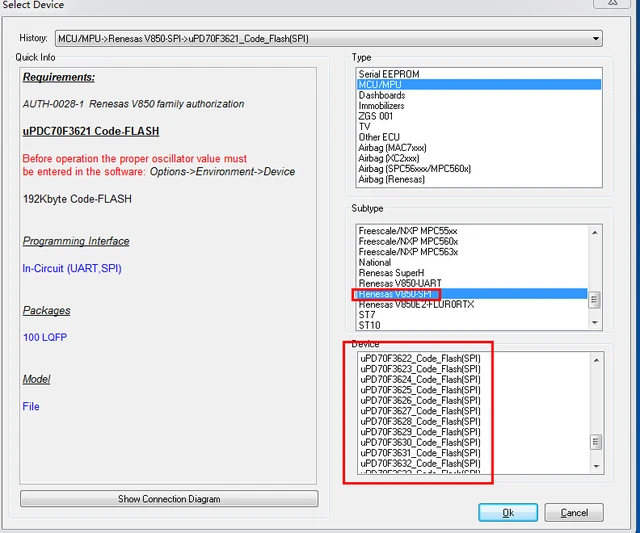

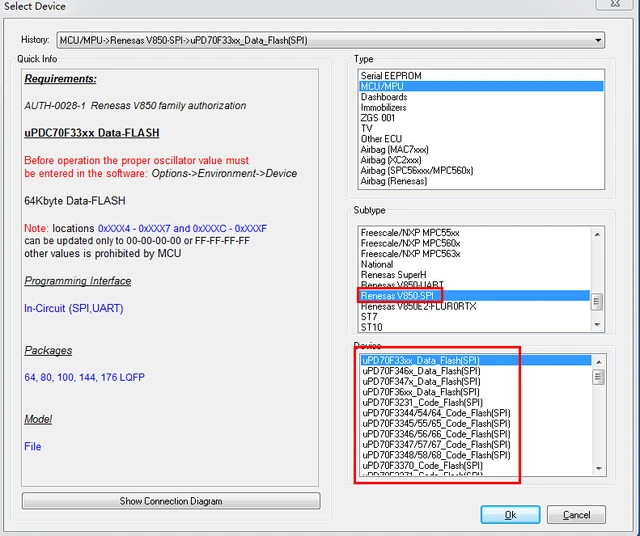

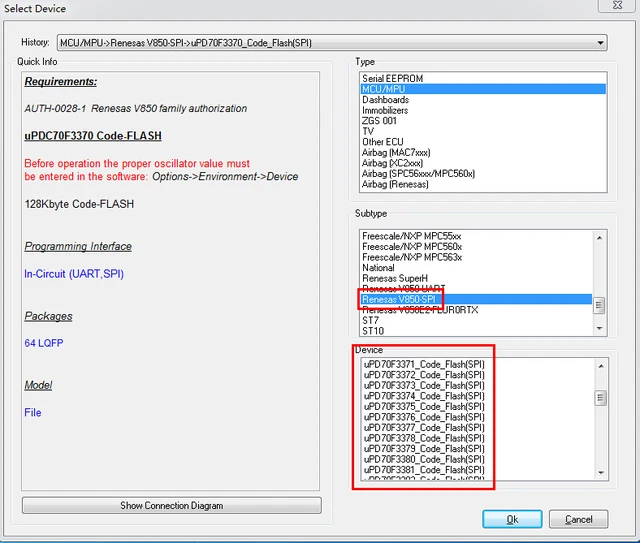

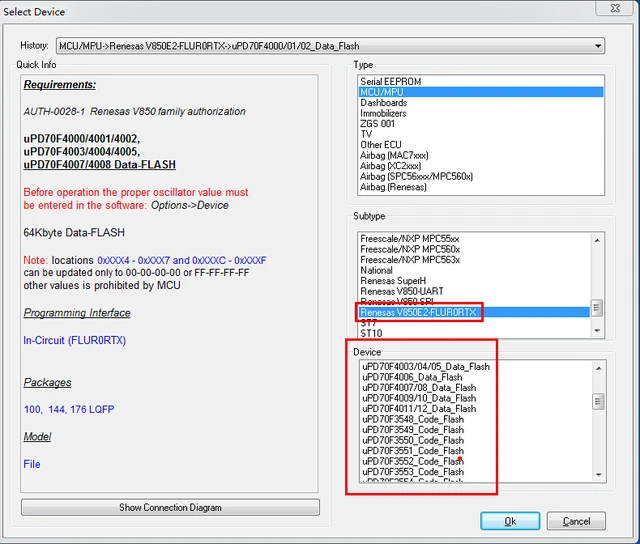

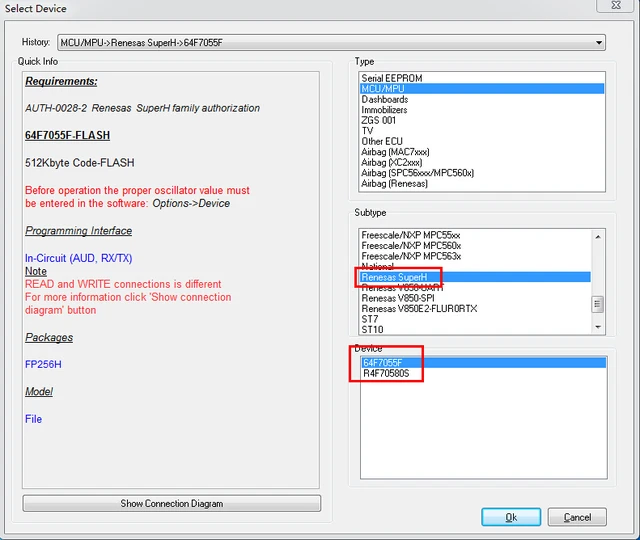

    AUTH-0028-1 Renesas V850 Authorized and AUTH-0028-2 Renesas SuperH Authorized 2017/10/9
    AUTH-0028-3 Renesas RL78Authorized and AUTH-0028-4 Renesas M32C Authorized(New Add)


    Q:What is the different between this V6.12 version and v5.86 v5.84,v5.74?

    A:Xprog V6.12Added Aauthorized:
    AUTH-0028-3 Renesas RL78 Authorized
    AUTH-0028-4 Renesas M32C Authorized

    Added 4 Adapters:
    ADP-0019 Rev.B
    ADP-0006 M35080 ICP adapter
    QFP64 MC908AZ/AS60 3K85K adapter
    QO18S714

    It improve the PCB performance.

    ​If buyer want to know if your chip is supported XPROG V6.12,please contact with us ,we will send you chip list file .

    How to connect XPROG V6.12?
    About Wire Digram,software has included it ,please check it


    XPROG V6.12 using tips:
    1.XPROG V6.12 dongle isn't compatible with older version Xprog.  You are not allowed to update from the older version Xprog V5.55 V5.60 V5.70 V5.84 to this newest V6.12 XPROG-M Dongle.
    2. Please Close all anti-virus software in your computer, becaUse the anti-virus software will kill Xprog V6.12 driver and software.
    3. Disconnect internet. Or V6.12 XPROG-M hardware may be damaged .
    4. Uninstall all the old version XPROG software before you install V6.12   software, because XPROG V6.12 hardware is not compatible with other version XPROG software. Otherwise the hardware will be damaged and its warranty will be invalid.
    5. Never try to UPDATE it, the hardware will be damaged if you try to update it online. Warranty will be invalid


    Install Notice:
    Please windows system required as below:
    1.Windows system should be windows XP 32bit OR windows 7 64 bit, all the patchsoftware for the windows system should be installed already and the windowsproperly works well...
    2.The windows system should be with at lest 2 partitions (except the CD ROM.)
    3.Can not be working with virtual harddisk.


    Install Steps Manual:
    1.Click the file "installation.reg", get the file information to theregedit.
    2.Install the file "AdbeRdr11000_zh_CN.exe", it is a must, otherwisethe Xprog software will not start.
    3.Plug the Xprog main interface to the computer, install the USB driver.
    4.Copy the folder "XPROG-BOX6.12" to the desktop, and open it, and runthe "xprogdesktop.exe", then software open.



    XPROG V6.12 Authorizations:
    AUTH-0001Motorola HC05 family authorization (allows to read/write EEPROM)
    AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)
    AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)
    AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROMand flash memory)
    AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows toread/write EEPROM)
    AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization(allows to read/write secured EEPROM and flash memory)
    AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
    AUTH-0008 BMW EWS3 authorization
    AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flashmemory)
    AUTH-0010 MB ZGS001 authorization
    AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypasssecurity bit and read EEPROM and RAM memory)
    AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
    AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
    AUTH-0015 MPC5xx authorization (depending on device program automaticallydetects MPC5xx, M95xxx device type, flash, external flash and configurationmemory size)
    AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization(allows to read/write secured EEPROM and flash memory)
    AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/writeinternal flash and external serial EEPROM)
    AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows toread/write secured and non-secured internal flash and external serial EEPROM,view /change mileage, Chassis number (VIN), serial number and PIN code).
    AUTH-0023-1 MAC7xxx
    AUTH-0023-2 XC23xx
    AUTH-0024-1 MC9S12Cxx
    AUTH-0024-2 MC9S12XE
    AUTH-0024-3 9S12XE SECURITY
    AUTH-0024-4 MC9S12HA/HY/P
    AUTH-0025-1 MPC/SPC5xxx Authorized 2016/3/13
    AUTH-0027-1HC(S)908 update Authorized 2016/3/13
    AUTH-0027-2HC(S)908 sercurity Authorized 2016/3/13
    AUTH-0028-1Renesas V850 Authorized 2017/10/9
    AUTH-0028-2Renesas SuperH Authorized 2017/10/9
    AUTH-0028-3Renesas RL78 Authorized ---New!
    AUTH-0028-4Renesas M32C Authorized ---New!


    XPROG-M V6.12 Adapters Newly Added:
    ADP-0019 Rev.B ----New!
    ADP-0006 M35080 ICP adapter ---New!
    QFP64 MC908AZ/AS60 3K85K adapter ---New!
    QO18S714 ---New!

    XPROG-M V6.12 Adapters included:
    ADP-0001 TMS370 PLCC28 programming adapter
    ADP-0002 TMS370 PLCC44 programming adapter
    ADP-0003 TMS370 PLCC68 programming adapter
    ADP-0004 Motorola HC05B/X PLCC52 programming adapter
    ADP-0005 Motorola HC05B/X QFP64 programming adapter
    ADP-0006 ST M35080 in-circuit programming adapter
    ADP-0008 TMS374 family in-circuit programming adapter
    ADP-0009 MC68HC05V12 programming adapter
    ADP-0010 TMS374 on-board programming adapter
    ADP-0011 HC11EA9/E9 programming adapter
    ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass securityadapter
    Additional adaptor for 5M48H P-FlashADP-0019Rev.A
    EWS3 adaptor
    EEPROM adaptor
    QFP28 adaptor
    QFP64 adaptor
    QFP80 adaptor
    QFP112 adaptor
    QFP144 adaptor

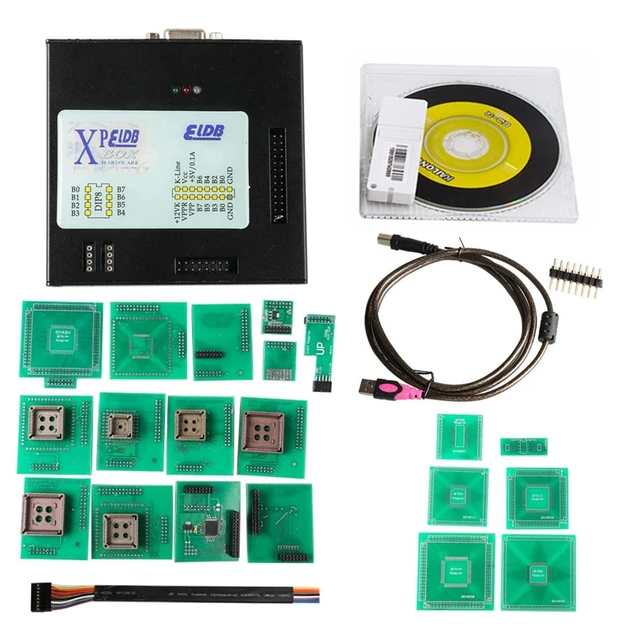

    Package List:
    1pc x  XPROG-Box Hardware (Aluminum Enclosure)
    19pc x  Adapters Set
    1pc  x  USB Cable
    1pc  x 16Pin cable
    1pc  x  CD with XPROG-Box Software (V6.12)

    9-不带USB狗展示 6.12-不带USB狗

    XPROG V6.12 PCB VS XPROG V5.84 PCB:

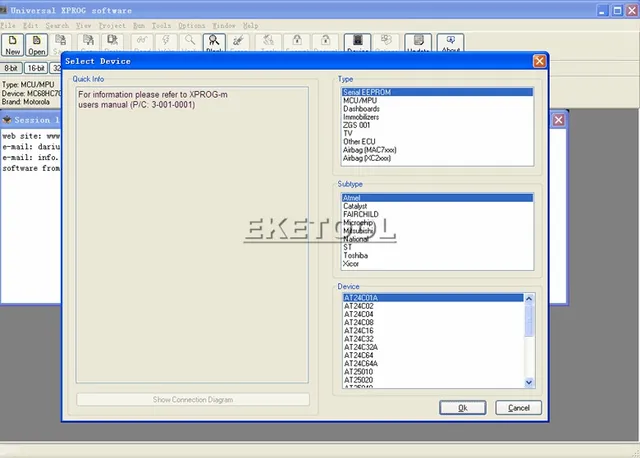

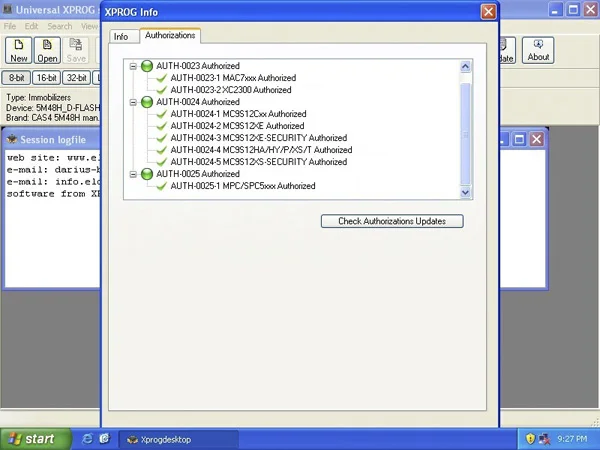

    software display

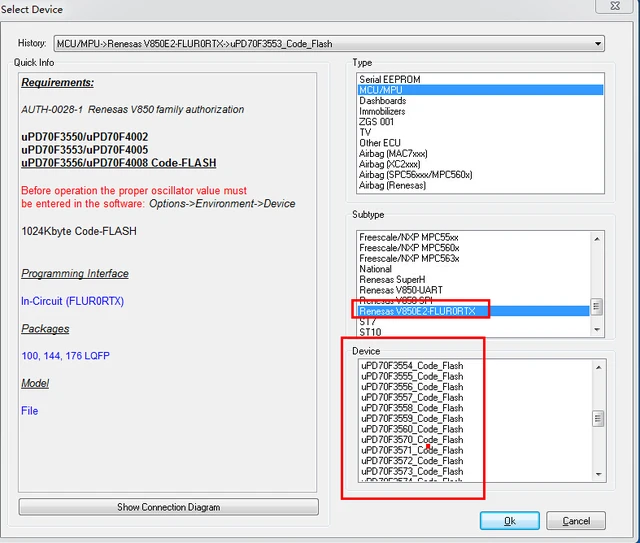

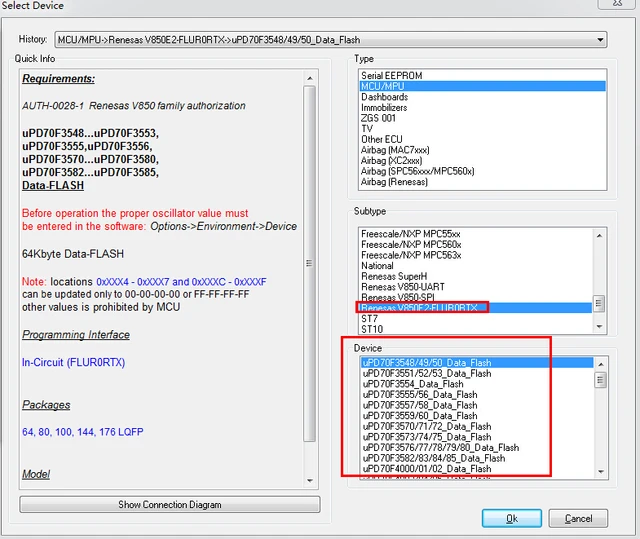

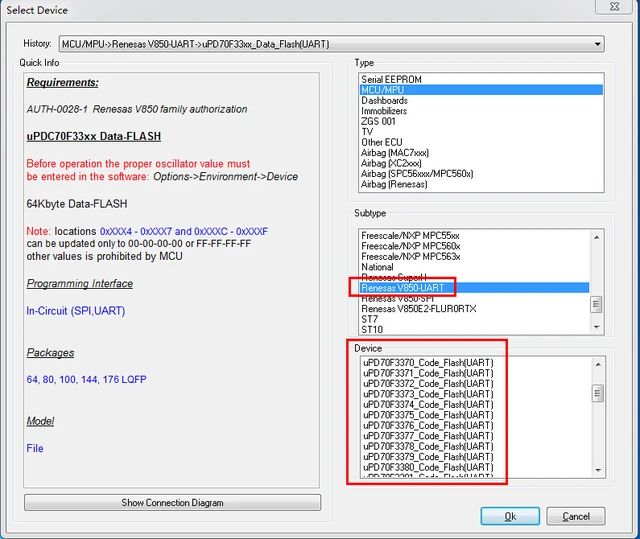

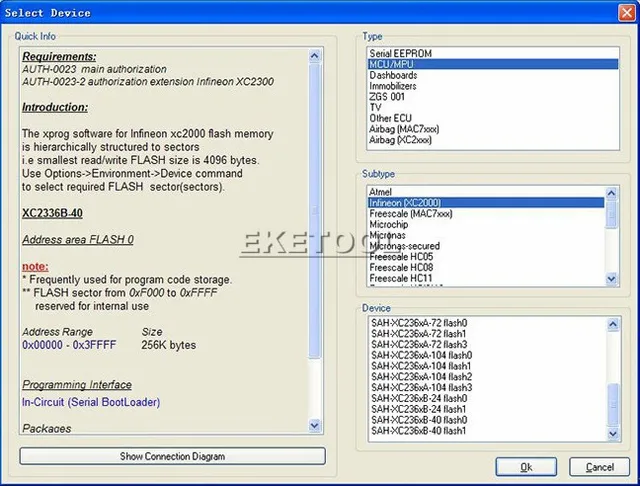

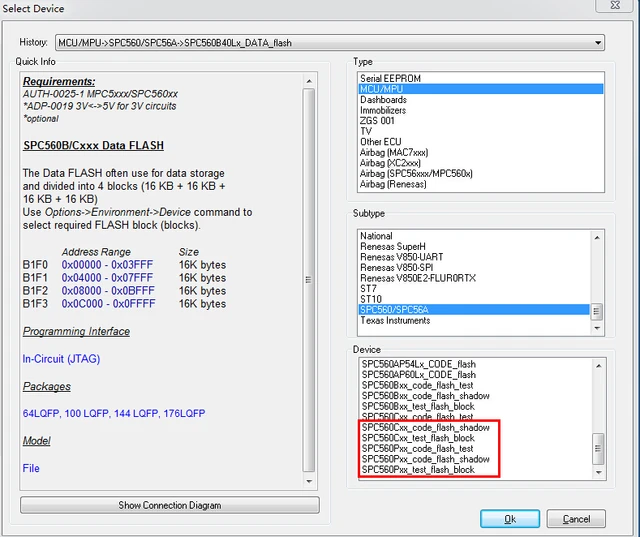

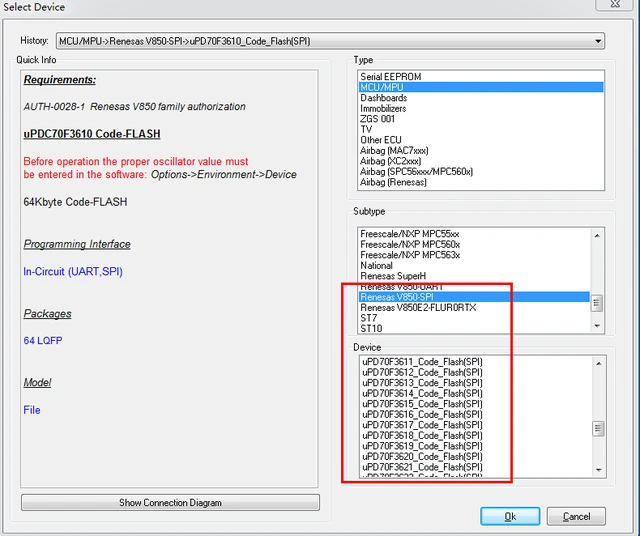

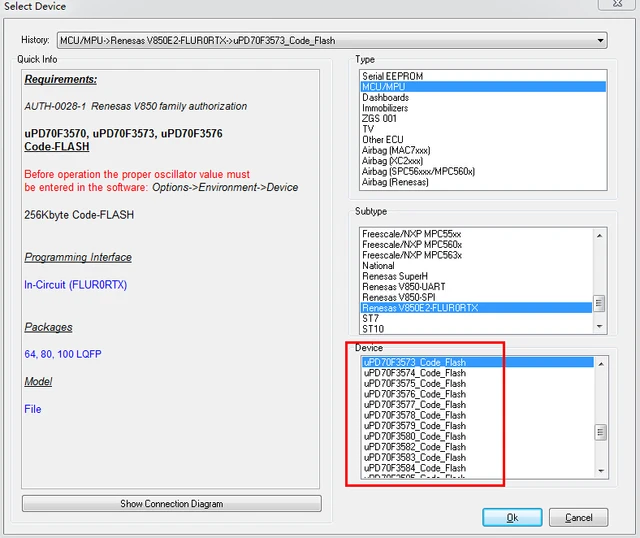

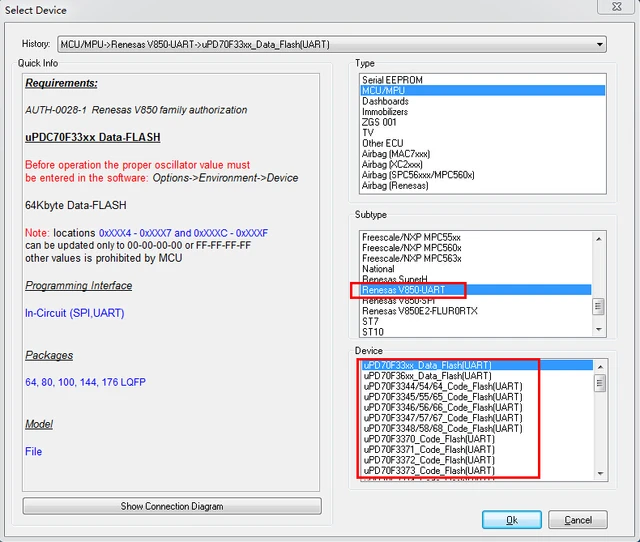

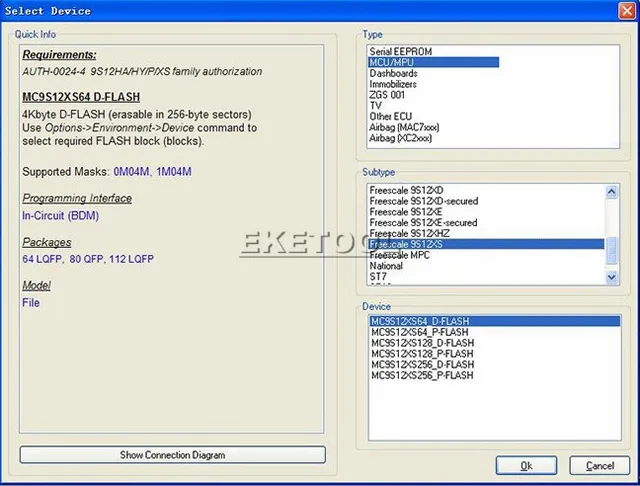

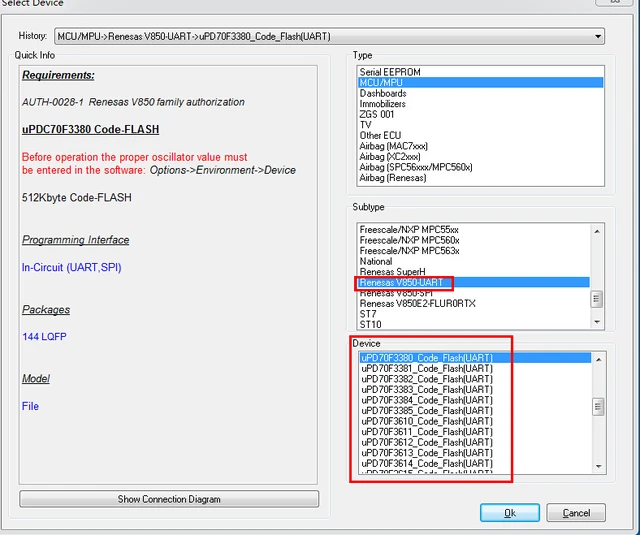

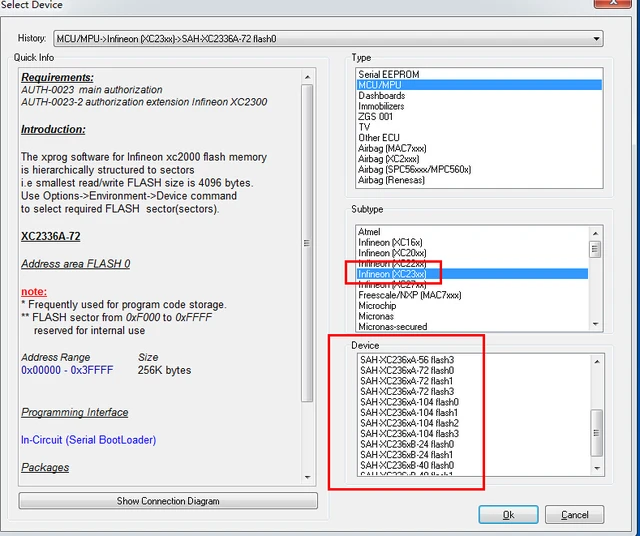

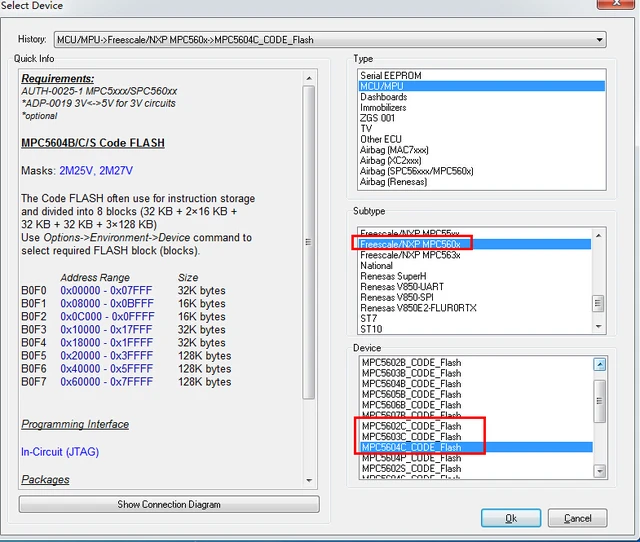

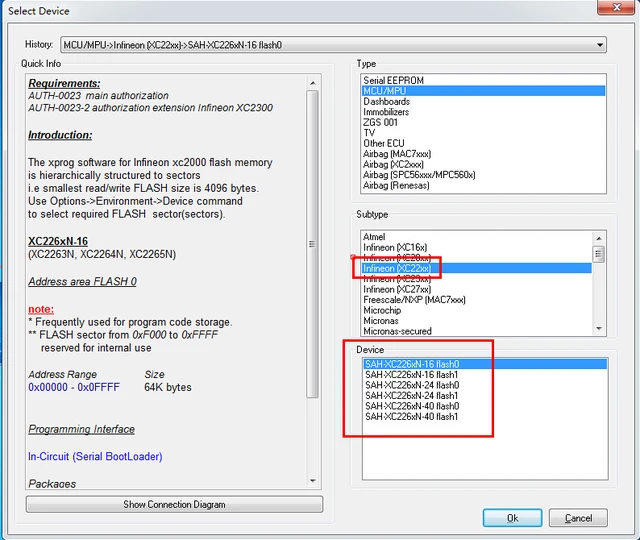

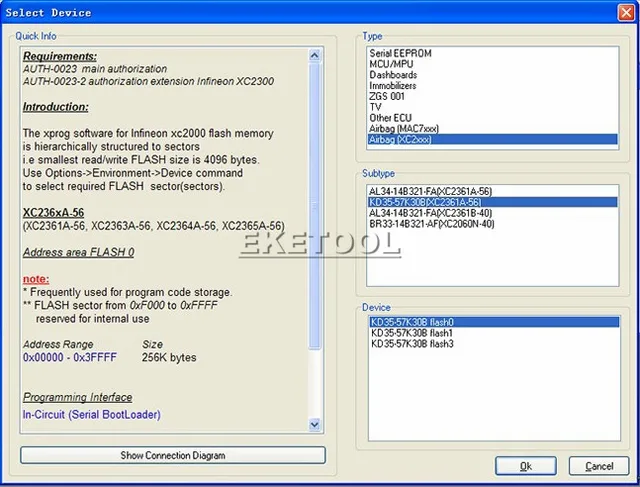

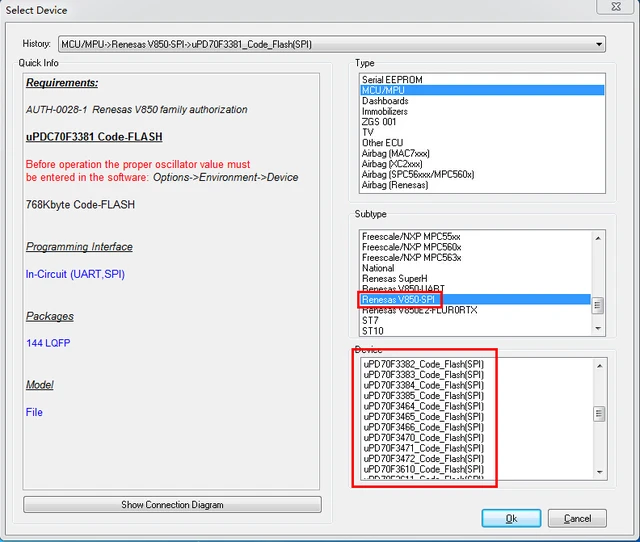

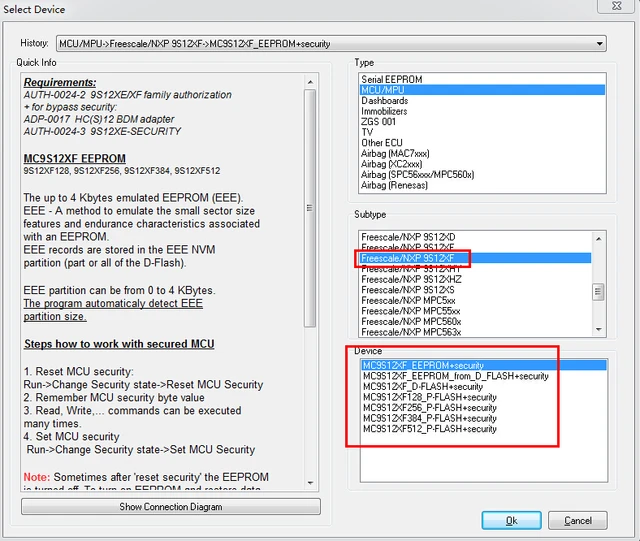

    XPROG-M V6.12 Software Add some functions part Display:




    Latest New XPROG-M V5.86 ECU Programmer Tool With USB Dongle

    Software V5.86 Firmware V4.4

    V5.84-2

    Please Pay Attention for V5.86 Installation Tips:

    Before install V5.86,please make sure MUST uninstall all old version xprog driver and software.

    If customer doesn't uninstall old xprog, once plug V5.86 to PC, the device authorization will lose and hardware will be damaged . Only send back for repair, it will waste too much time .



    CD have video instruction, please MUST follow every steps.



    There are 3 steps MUST DO Right:

    Step 1:

    When install PDF File and runs AcroRead.msi, MUST CLICK the last optional “Manually check for and install updates(no recommened)”

    (DO NOT choose others, otherwise it will lost authorization, device damaged)

    步骤-1

    Step 2:

    please MUST CLICK Registry File "5.86registry.reg". So it can avoid lose certificate.

    步骤-2

    步骤-3

    步骤-4

    Step 3:

    Set up driver for Twice. DO THE SAME STEPS twice (MUST follow video EXACT steps)

    步骤-5



    PS:  if buyer meet software message shows "Waiting Certificate" that means you did not run software correct, Certificate already lost.It only flash IC Chip or send back for repair .So please Must pay attention to it.

    Here is error photo:



      XPROG-M V5.86 Highlights:
    1.  Latest software version: V5.86 , Firmware:V4.4
    2. With USB Dongle, No need to activate,more secure&protect software.
    3. Add new authorization: AUTH-0028-1 Renesas V850 Authorized and AUTH-0028-2 Renesas SuperH Authorized 2017/10/9
    4. Language: English
    5. Newest version can decrypt new version For BMW CAS4


    Install Notice:
    XPROG-M V5.86 windows system required as below:
    1. Windows system should be windows XP 32bit OR windows 7 64 bit, all the patch software for the windows system should be installed already and the windows properly works well...
    2. The windows system MUST be with at lest 2 partitions (except the CD ROM.),can not work if only one space in computer.
    3. Can not be working with virtual harddisk.


    XPROG-M V5.86 Install Manuals:
    1. Click the file "installation.reg", get the file information to the regedit.
    2. Install the file "AdbeRdr11000_zh_CN.exe", it is a must, otherwise the Xprog software will not start.
    3. Plug the Xprog main interface to the computer, install the USB driver.
    4. Copy the folder "XPROG-BOX5.86" to the desktop, and open it, and run the "xprogdesktop.exe", then software open.
    5. Please Close Anti-virus programmer before run software.
    6. If CD broken in shipping way ,please feel free to CONTACT US to send you download weblink.


    XPROG-M V5.86 using tips:
    1. You are not allowed to use this newest dongle to update the older version Xprog to V5.86
    2. Close all of the computer anti-virus software. If not, X-prog software may be killed.
    3. Disconnect the internet. If not, the internet maybe damage the hardware.
    4. Uninstall all of the old version xprog-m or xprog box software before you install V5.86 software we provide, because our xprog-box hardware is not compatible with other lower or higher version software, otherwise the hardware will be damaged and will lose its warranty...
    5. Never try to UPDATE, the hardware will be damaged if you want to try to update it online, then you will lose its warranty.


    XPROG-M V5.86 Authorizations:
    AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)
    AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)
    AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)
    AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
    AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
    AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)
    AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
    AUTH-0008 BMW EWS3 authorization
    AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)
    AUTH-0010 MB ZGS001 authorization
    AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
    AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
    AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
    AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
    AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
    AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)
    AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage, Chassis number (VIN), serial number and PIN code).
    AUTH-0023-1 MAC7xxx
    AUTH-0023-2 XC23xx
    AUTH-0024-1 MC9S12Cxx
    AUTH-0024-2 MC9S12XE
    AUTH-0024-3 9S12XE SECURITY
    AUTH-0024-4 MC9S12HA/HY/P
    AUTH-0025-1 MPC/SPC5xxx Authorized 2016/3/13
    AUTH-0027-1 HC(S)908 update Authorized 2016/3/13
    AUTH-0027-2 HC(S)908 sercurity Authorized 2016/3/13
    AUTH-0028-1 Renesas V850 Authorized 2017/10/9
    AUTH-0028-2 Renesas SuperH Authorized 2017/10/9


    XPROG-M V5.86 Adapters:
    ADP-0001 TMS370 PLCC28 programming adapter
    ADP-0002 TMS370 PLCC44 programming adapter
    ADP-0003 TMS370 PLCC68 programming adapter
    ADP-0004 Motorola HC05B/X PLCC52 programming adapter
    ADP-0005 Motorola HC05B/X QFP64 programming adapter
    ADP-0006 ST M35080 in-circuit programming adapter
    ADP-0008 TMS374 family in-circuit programming adapter
    ADP-0009 MC68HC05V12 programming adapter
    ADP-0010 TMS374 on-board programming adapter
    ADP-0011 HC11EA9/E9 programming adapter
    ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter
    Additional adaptor for 5M48H P-Flash
    ADP-0019 Rev.A
    EWS3 adaptor
    EEPROM adaptor
    QFP28 adaptor
    QFP64 adaptor
    QFP80 adaptor
    QFP112 adaptor
    QFP144 adaptor

    Package List:
    1  x  XPROG-Box Hardware (Aluminum Enclosure)
    20x  Adapters Set
    1  x  USB Cable.
    1  x USB Dongle
    1  x  CD Software

    2

    software display

    XPROG V5.86 Add New Authorization,please check below photo Display

    V5.84-3V5.84-4V5.84-5V5.84-6V5.84-7V5.84-8V5.84-9V5.84-10V5.84-11V5.84-12V5.84-13V5.84-14V5.84-15V5.84-16

    V5.84-17V5.84-18V5.84-19V5.84-20V5.84-21V5.84-22V5.84-23V5.84-24V5.84-25V5.84-26V5.84-27V5.84-28V5.84-29V5.84-30V5.84-31V5.84-32




    XPROG M V5.55 Full Adapters Black Metal Box



    Highlight of XPROG 5.55:

    New Software Version:V5.55
    V5.55 Especially For BMW CAS4 DECYPATION
    System Requirement:Windows XP/WIN7 32bits Only (close an-virus program,or soft ware attacked)
    Add new authorization: AUTH-0025 Authorized 11/4/2014
    Without USB Dongle,Software is not encrypted.Feel free to install software.


    Note For XPROG V5.55:
    1.Old Version like V5.0/V5.3 tool ,it can not use with this V5.55 .
    2.Disconnect internet when run soft ware ,otherwise device will damaged.
    3.Don't update online, or hardware broken and can not work any more.
    4.Please unistall all old Xprog version clearly ,and make sure install Our XPROG 5.55 only into your PC only .
    Please read and following those tips when install Xprog V5.55,otherwise hardware can not use any more .


    XPROG-M V5.55 Authorizations:
    AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)
    AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)
    AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)
    AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
    AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
    AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)
    AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
    AUTH-0008 BM  EWS3 authorization
    AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)
    AUTH-0010 MB ZGS001 authorization
    AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
    AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
    AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
    AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
    AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
    AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)
    AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, viewange mileage,chassis number (VIN), serial number and PIN code).
    AUTH-0023-1 MAC7xxx
    AUTH-0023-2 XC23xx
    AUTH-0024-1 MC9S12Cxx
    AUTH-0024-2 MC9S12XE
    AUTH-0024-3 9S12XE SECURITY
    AUTH-0024-4 MC9S12HA/HY/P
    AUTH-0025-1 MPC/SPC5xxx
    Authorized 11/4/2014


    XPROG-M V5.55 Adapters:
    ADP-0001 TMS370 PLCC28 programming adapter
    ADP-0002 TMS370 PLCC44 programming adapter
    ADP-0003 TMS370 PLCC68 programming adapter
    ADP-0004 Motorola HC05B/X PLCC52 programming adapter
    ADP-0005 Motorola HC05B/X QFP64 programming adapter
    ADP-0006 ST M35080 in-circuit programming adapter
    ADP-0008 TMS374 family in-circuit programming adapter
    ADP-0009 MC68HC05V12 programming adapter
    ADP-0010 TMS374 on-board programming adapter
    ADP-0011 HC11EA9/E9 programming adapter
    ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter
    Additional adaptor for 5M48H P-Flash


    Computer Requires:
    Processor: INTEL Pentium 60MHz or faster (depends on operating system)
    Memory (RAM): 64MB (depends on operating system)
    Hard drive: 20MB free space
    Communication: One free physical COM or USB port
    Operating system: Microsoft Windows NT/ME/2000/XP/VISTA/WIN7 32Bits Only


    Package List:
    1  x  XPROG Unit
    18 x  Programming Adapter
    1 x  USB Cable.
    1 x CD Software
    11

    software display

    -1-2-3-4-5-6-7


  • follow us
